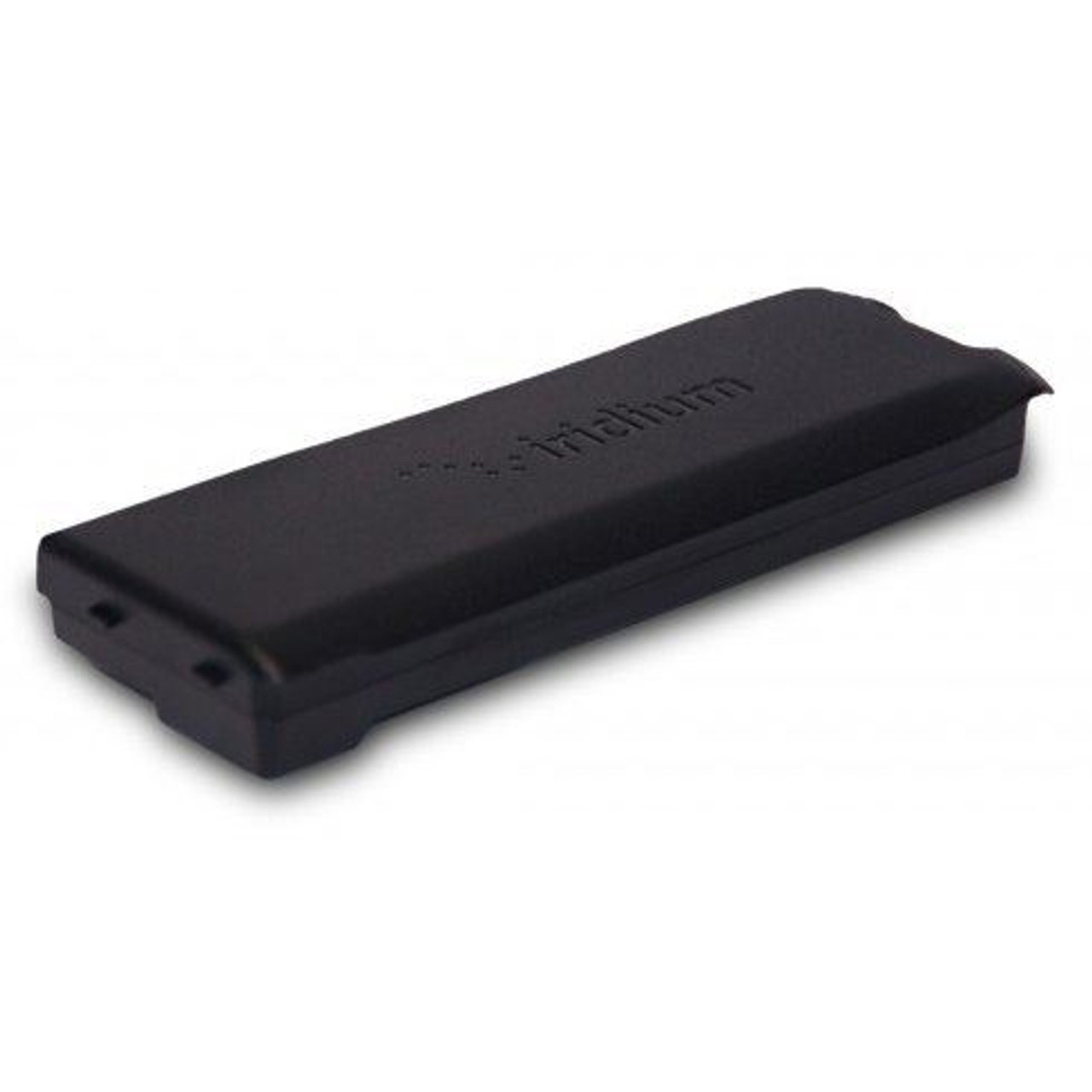

The new Iridium 9555 High Capacity Battery provides Iridium customers with up to 6.5 hours of talk time
and 43 hours of standby time in full network coverage. The battery is integrated with the design of the
9555, is low-profile, and easy to install and remove.

Specifications
· Capacity: 3760 mAh
· Voltage: 3.7 V
· Talk time: up to 6.5 hours in full network coverage
· Standby time: up to 43 hours in full network coverage
· Charge time: 4 hours
· Weight: 3.25 oz (92 g)
· Operating temperature:
  Charging: 0…40 ºC (32 ºF…104 ºF)
  Discharging: -20 ºC…60 ºC (-4 ºF…140 ºF)

Regulatory Information
· Tested CE compliant: EN 6100--‐6--‐1:2007, EN 6100--‐6--‐3:2007
· RoHS compliant
· Tested UNDOT compliant: UN38.3, rev 5
· Country of Origin: China

Disclaimers and Warnings
Battery life estimates are based on laboratory testing. Actual battery life may vary depending on use conditions. All batteries may cause serious injury or property damage, particularly if handled improperly or used after damage. Improper treatment or use of batteries may present a danger of fire, explosion, leakage, or other hazard. See Iridium User's Manual for additional Warnings and Safety Guidelines.

Other Information
Firmware Dependency. The 9555 high capacity battery will work properly with all firmware versions but in order for the battery icon on the phone display to provide an accurate representation of charge level, phone firmware HT11001 or newer is required. With previous versions of phone firmware, the battery will provide the same level of talk time and standby time; however, the charge level may appear to be more depleted then the battery’s actual state. An insert is provided with the 9555 high capacity battery to describe this firmware dependancy.

To check the firmware on your Iridium 9555 Satellite Phone go to Menu > Setup > Phone Information
Most recent firmware version as of August 31, 2011 is HT10017
Contact BlueCosmo to upgrade the firmware on your 9555 Satellite Phone 877-258-3496 or info@bluecosmo.com
