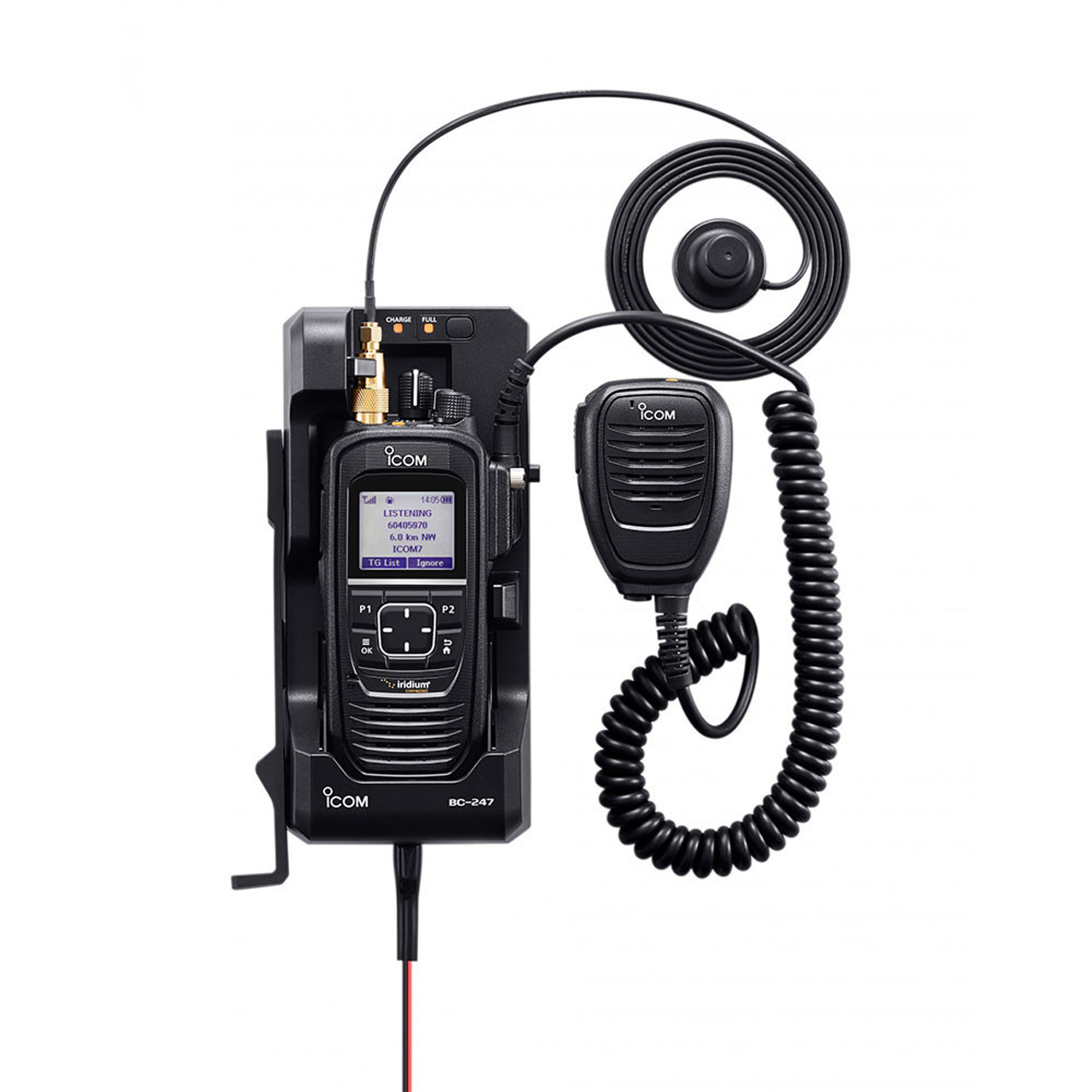

The Icom BC-247 docking station for the Icom IC-SAT100 satellite PTT radio is ideal for in-vehicle and fixed-site use, allowing the radio to be docked for access to AC or DC power and connected to an antenna. For a complete solution, the BC-247 Docking Station can be used inside a vehicle or a building with an optional HM-222 fist microphone and AH-40 magnetic mount antenna. Operating between 9V and 32V DC, it is easy to install and also features an anti-theft function that triggers an external horn when the radio is removed from the dock. The Icom BC-247 is well suited to IC-SAT100 users in public safety, first responders, and humanitarian organizations who require an in-vehicle mount, and for fixed-site applications such as construction field office.
Highlights:
- Compatible with Icom IC-SAT100 PTT radio (sold separately)
- Designed for installations in a vehicle, vessel, building or aircraft
- Charges the IC-SAT100 radio while docked
- Anti-theft function
- One (1) year manufacturer’s warranty
Features and Tech Specs
- Rugged, durable design
- Can be docked for AC or DC power
- Dimensions (L x W x D): 8 x 3.7 x 2.9" (20.3 x 9.3 x 7.45 cm)
- Weight: 10.9 oz (310 g)
- Operating temperature range: 59°F to 104°F (15°C to 40°C)
Applications
All types of vehicles
Fixed-site applications
Integrated aircraft communications
What's in the Box
- Charger dock
- AC power adapter
- DC adapter cable (approx. 11.8" (30 cm))
- DC cable including horn lead and ignition lead (approx. 118.1" (3 m))
- Rubber band secure strap
- Screws (A0 x 4) (0.78" (20 cm))
- Flat washers (M4)
- Spring washers (M4)
